Compressed air is an essential part of countless industrial processes. It powers tools, actuators, machinery and production equipment every day. But because pneumatic systems are so familiar, it's easy to overlook the energy they contain and the risks that can arise when something goes wrong.
Hoses, fittings and couplings might seem like relatively simple components, but their selection, installation and maintenance can have a direct impact on workplace safety. WorkSafe Victoria has highlighted incorrect selection, installation and maintenance of hose assemblies and fittings as factors in incidents involving loss of containment, while also identifying hose whip as a significant risk when pressurised hoses fail or disconnect.
That makes pneumatic safety something worth considering at the component level, not just at the machine level.
The connection matters
Quick couplings are designed to make connecting and disconnecting pneumatic equipment fast and convenient. But what happens when a coupling is disconnected is just as important as how easily it connects.
If pressure remains trapped downstream, separating the connection can result in a sudden release of compressed air, creating noise and potentially causing hose movement or recoil.
ISO 4414 specifically addresses the selection of quick-action couplings, stating that they should not separate in a hazardous manner, should not expel compressed air or particles dangerously, and should incorporate controlled pressure release where a hazard may exist.
In other words, a quick coupling isn't simply a connection point. It's part of the safety of the pneumatic system.

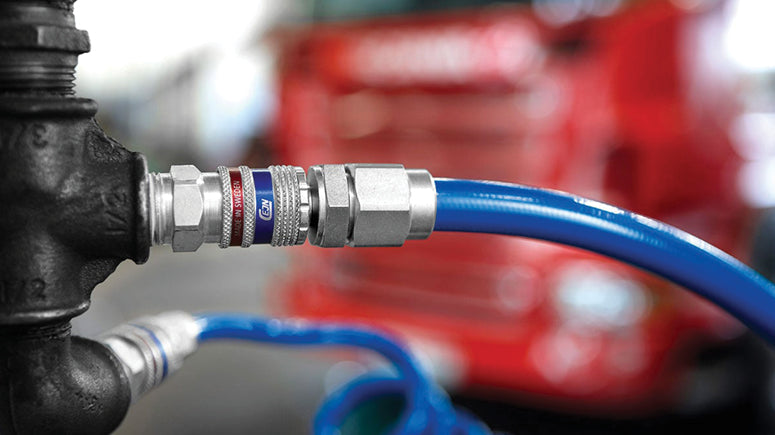

A closer look at CEJN eSafe
Pneutech supplies CEJN's eSafe range of safety couplings, which incorporates a vented safety function designed around this principle.
During disconnection, eSafe vents downstream pressure before the coupling separates. CEJN says this reduces noise and eliminates recoil associated with the sudden release of downstream pressure. The coupling is also designed for one-handed operation: pulling the sleeve initiates the venting process before disconnection.
Importantly, safety doesn't have to come at the expense of performance. CEJN's eSafe range is designed around high flow and low pressure drop, with the manufacturer stating that the design can reduce compressed-air energy consumption by up to 30%, depending on the application and system.
It's a useful example of a broader principle: good pneumatic design considers safety and performance together.
A quick pneumatic safety check
A few simple questions are worth asking when reviewing your pneumatic system:
- Couplings: Are they appropriate for the application and designed to disconnect safely?
- Hoses: Are they showing signs of wear, damage or deterioration, and are they adequately restrained where required?
- Connections: Are fittings compatible, secure and free from leaks?
- Pressure: Is downstream or trapped pressure safely released before disconnection?
- Maintenance: Are hoses, fittings and couplings regularly inspected and replaced when necessary?
If you're unsure about any part of your pneumatic system, it can be worthwhile getting another set of eyes on it.
At Pneutech, we believe good pneumatic engineering is about understanding how individual components work together as a system. If you'd like to review your pneumatic connections, hoses or safety arrangements, talk to the Pneutech team.
